VT UPDATE 2-278

DELETED 1P11, 1P45, 5P11, 5P45 FIRE DOORS

DELETED FD FIRE CORE

IMPORTANT
BOTH THE OLD AND NEW FIRE DOOR CORES CANNOT RESIDE IN VTOL, YOU WILL NEED TO UPDATE ALL PROJECTS AND INVENTROY WITH THE NEW PFRE AND VFRE CORES. FD CORE AND DELETED FIRE DOORS WILL NOT BE AVAILABLE FOR SELECTION

ADDED VFRE & PFRE FIRE DOORS

ADDED PFREFIRECORE AND VFREFIRECORE

VFRE FIRE DOOR TAKEOFF EXAMPLE

VFRE PROPERTIES

PFRE FIRE DOOR TAKEOFF EXAMPLE

PFRE PROPERTIES

VT Industries Brand Guide
Revision January 18, 2023 / Rev 1/20/23

Takeoff HPDL door with same laminate on face, stile and rail surfaces.

(Faces, Stiles and Rails Same color)

Properties Required by Attribute Selections

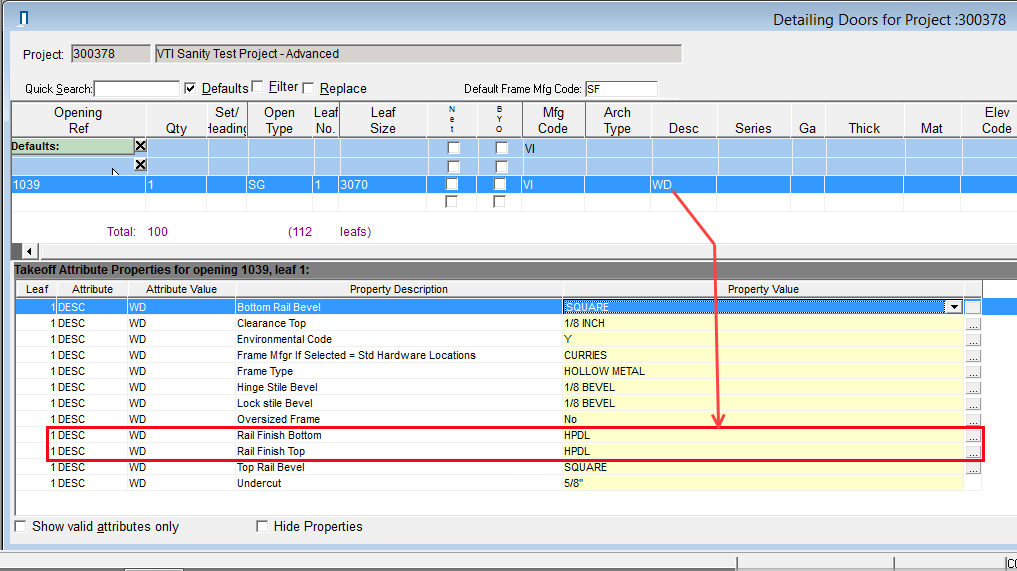

Desc = WD - Rail Finish Bottom, Rail Finish Top


Description - WD (Wood Door) (Top and bottom rail finish)

When WD is selected, new properties are required for Top and Bottom Rail Finish. Select HPDL for Rail Finish Bottom and Rail Finish Top.

**************************************************************************

EDGE

Leave Edge Column Empty

**************************************************************************

FINISH - (Laminate Mfr.)

Select the Laminate Mfr. as required which will populate the required laminate colors

FACE LAMINATE (Hinge and Lock Face Laminate)

Select the Hinge Face Laminate and Lock Face Laminate required

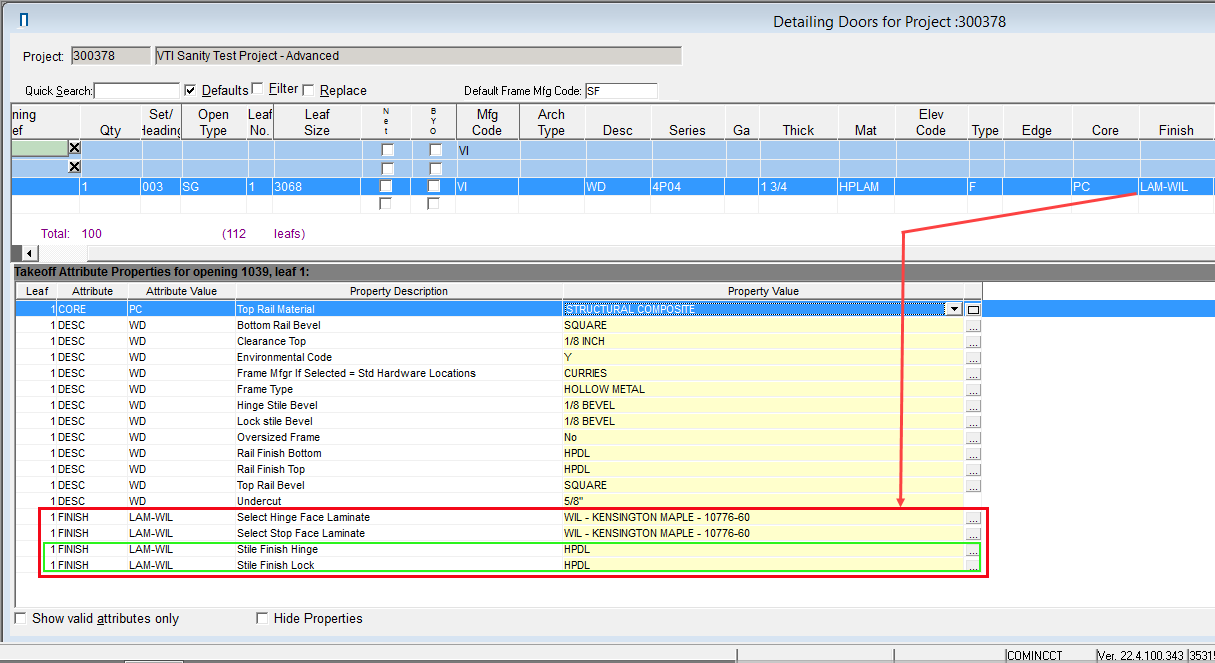

Stile Finish (Hinge and Lock Stile Finish)

Select the Stile Finish Hinge and Stile Finish Lock. (HPDL)
At this point, all six sides are now entered for the same laminate selection and there is no further information required.

************************************************************************
MISC-ENG

Do not select anything from MISC-ENG group.

************************************************************************

VT ONLINE VALIDATION

The following are validated door details in VTOL and returned to client for review.
