Doors

(Brand guide development in progress)

Frames

Specialty DESC attributes for complete frame inventory records

Some frame descriptions such as SGLKD, SGLWLD, etc. are available only in Enterprise to allow users to maintain complete frames as inventory items rather than as pieces at the component level. The costing of these inventory items must be maintained manually.

THROAT Standard Group in Preps

As our jamb depth attributes can only be assigned one throat size per jamb depth regardless of frame series, there are occasions where a throat depth other than the Comsense-specified one may be required, even for otherwise standard frame profiles.

For example, the Steelcraft F series has a throat dimension of 4-7/8" for 5-3/4" jamb depth due to 7/16" backbends, while all other series -- including other S series frame profiles -- have 1/2" backbends, and therefore 4-3/4" throats. All of these frames are standard profile, not custom.

To accommodate this, please specify a no-charge prep from the THROAT Standard Group to indicate a throat size other than the automated one provided by the catalog database.

Applying these preps will also modify the throat size values in frame submittals.

Rev. - August 7, 2022
IN OPENING SUITE STEELCRAFT JAMBS DO NOT INCLUDE ANCHORS DUE TO ANCHOR DEDUCTS

Rev. - August 8, 2022
STEELCRAFT PRICE BOOK - ALL JAMBS INCLUDE STANDARD ANCHOR PRICING

IF YOU BUILD A FRAME AND DO NOT ADD ANCHORS, YOUR PRICE WILL BE INCORRECT

When using other than standard anchors, you must select the OMIT_FA and OMIT_WA. Since the anchor price has already been removed there will be no pricing deducted when selected. Anchor pricing will be added in when the anchor type required is selected.

Pricing comparison without anchors vs with anchors clearly shows a correct price will not be returned if you do not add anchors to each opening in your takeoff.

Rev. - April 5, 2023
IN THE STEELCRAFT PRICE LIST, UNDERCUTS "LESS THAN 3/8" ARE PRICED AS NEXT LARGEST SIZE DOOR IN THE PRICE BOOK.
THE SYSTEM CANNOT DETERMINE THE HEIGHT OF THE DOOR BASED UPON A PREP BUT A PREP CAN ADD THE EXTRA COST TO DO SO IN SIMPLE PROCESS IN THE PRICING WINDOW.

1. Determine the cost of the next largest size door either from the price book or project pricing window without any special preps applied.
2. Enter the cost of the next largest size door in the Adj. Cost column. This becomes the base price of the door and covers the undercut cost.
3. The price difference between the 68 high door and the 70 high door is $463.00 which is the undercut charge.

4. For any other special condition, for example, where there is no larger size door over 8'0" use the Special Undercut for ALL Series Except H - Call for Pricing.

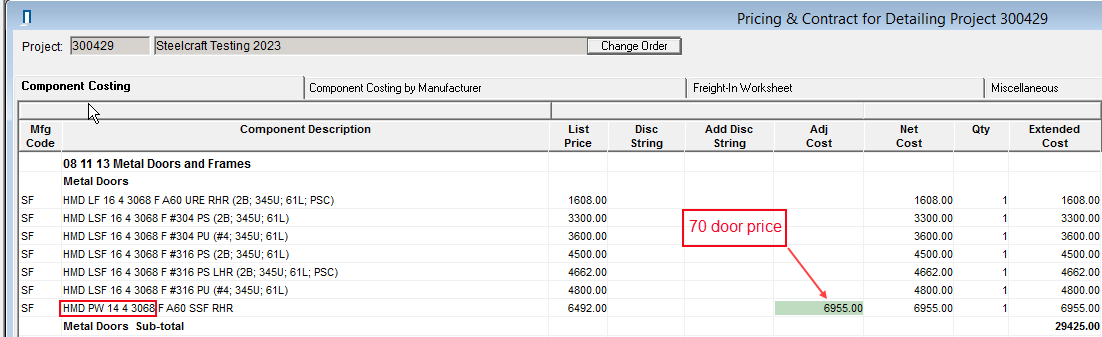

USING THE ADJ. COST COLUMN TO PROPERLY PRICE DOORS WITH UNDERCUTS LESS THEN 3/8"
A 3068 door as specified and detailed. Find the cost for the next largest sized door and enter the entire cost in the Adj. Cost column. This becomes the base price for the 3068 door entered in the takeoff window.

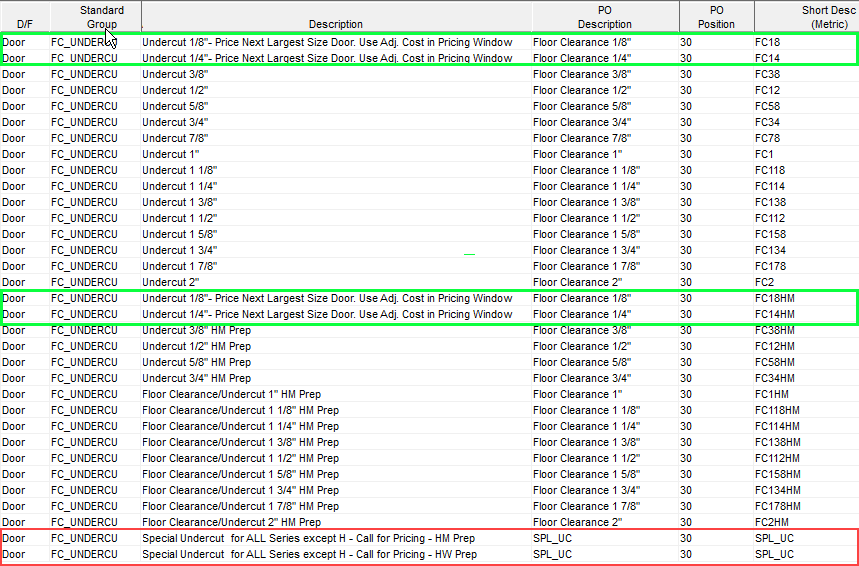

COMPLETE UNDERCUT TABLE FOR HARDWARE AND HOLLOW METAL PREPS. HARDWARE NOT MARKED, HOLLOW METAL MARKED HM
